| Type: | Punching | Size: | 650*320*1180MM | General Use: | Shoes, bags, leather, etc. |
| Voltage: | 220V | Power: | 0.55KW | Net Weight: | 100KG |
| Place of Origin: | Zhejiang, China (Mainland) | Brand Name: | HONGMAO | Model Number: | HM-A6 |
| Air pressure: | 0.6Mpa | Pitch distance: | 11.5~28MM | ||

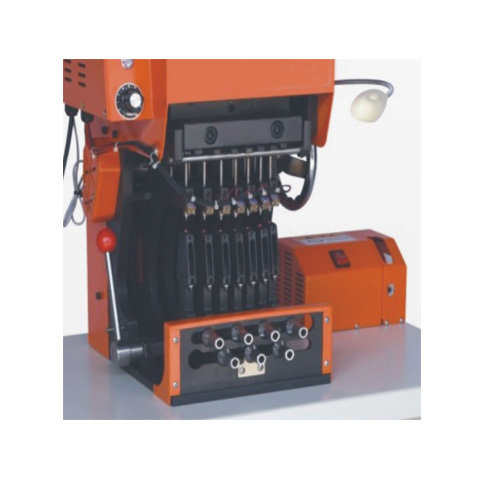

This machine is widely used in uppers, belts, bags, leather goods etc.
Characters
1, Single hole or multi holes punching on a straight line;
2, Seven holes can be punched at one time;
3, It can adjust the equal distance and unequal distance between the holes, and locate with the infrared cross point as the benchmark, so the operation is simple and convenient;
4, The size of the punching needles can be changed according to the request, and there is no need to punch plate;
5, The maximum size of the punching needle is 5.0, and the minimum is 1.5;
6, The machine is equipped with a needle grinder, and the punching needles can be grinded repeatedly;
7, This machine has the advantages of high efficiency and low cost;
